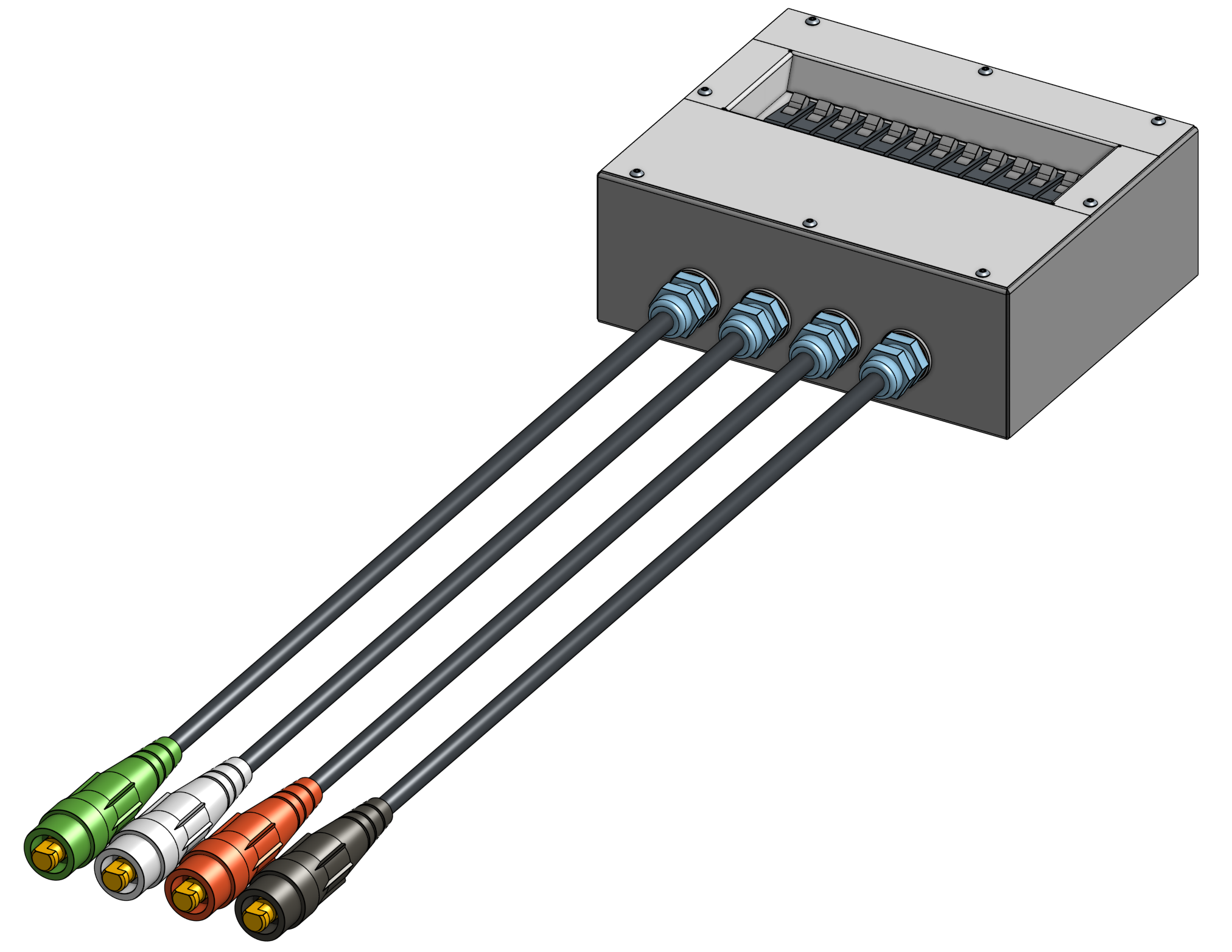

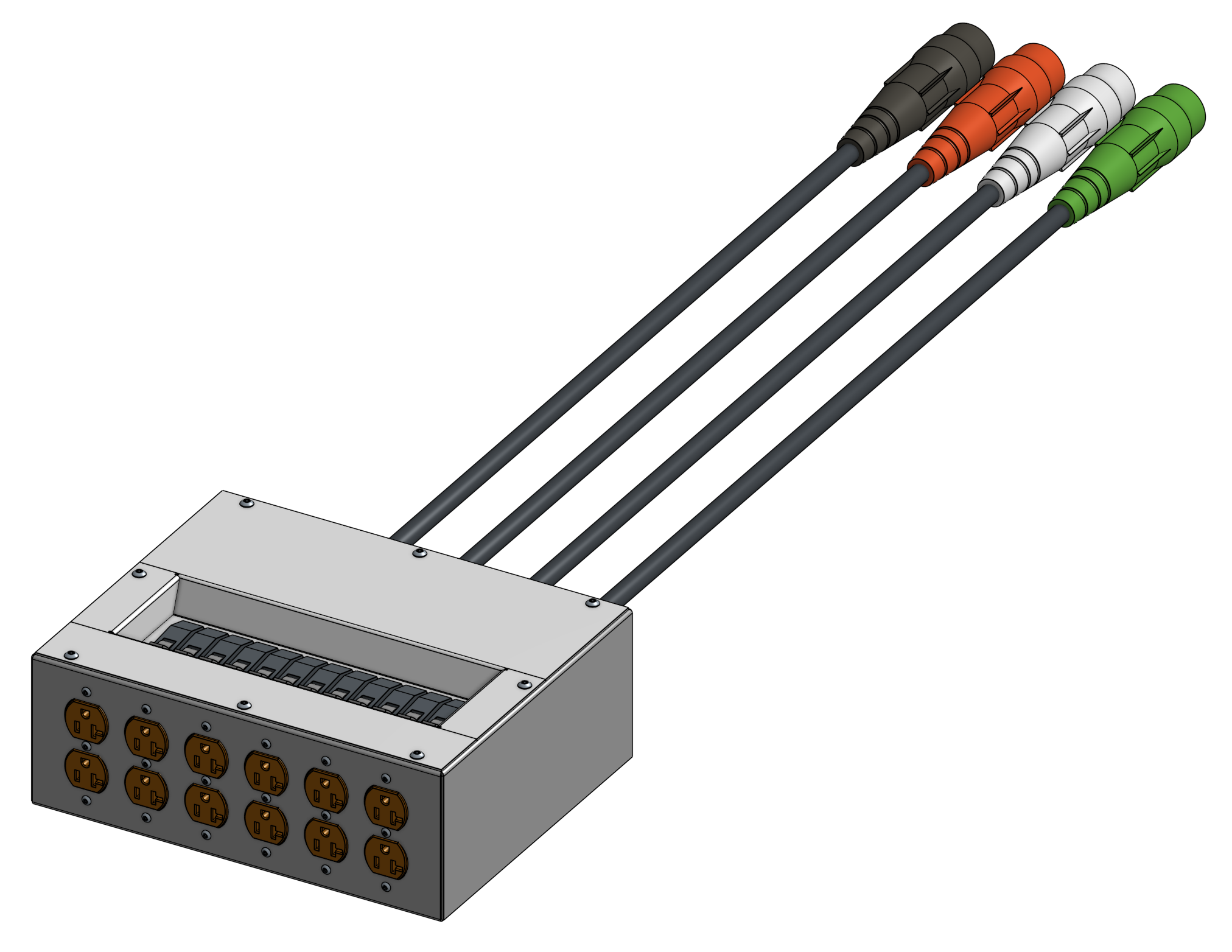

12x20A Load Centre

  • Model:
    12x20
  • Load:
    12 x 20 Amp 120V NEMA 5-20 Duplex Receptacles
  • Line:
    208-240 Volt - 200 Amps - 1Ø 3W G - 60Hz AC

Standard Features

  • Indoor 12×20 Amp Power Distribution
  • 12 x 20 Amp connections via 6 split wired Hospital Grade Duplex Receptacles
  • Colour coded J or E Series Cam-style inlines
  • Rugged All Stainless Steel
  • 10K AIC as a minimum

Optional Features

  • Reverse Gender Neutral and/or Ground
